Features:

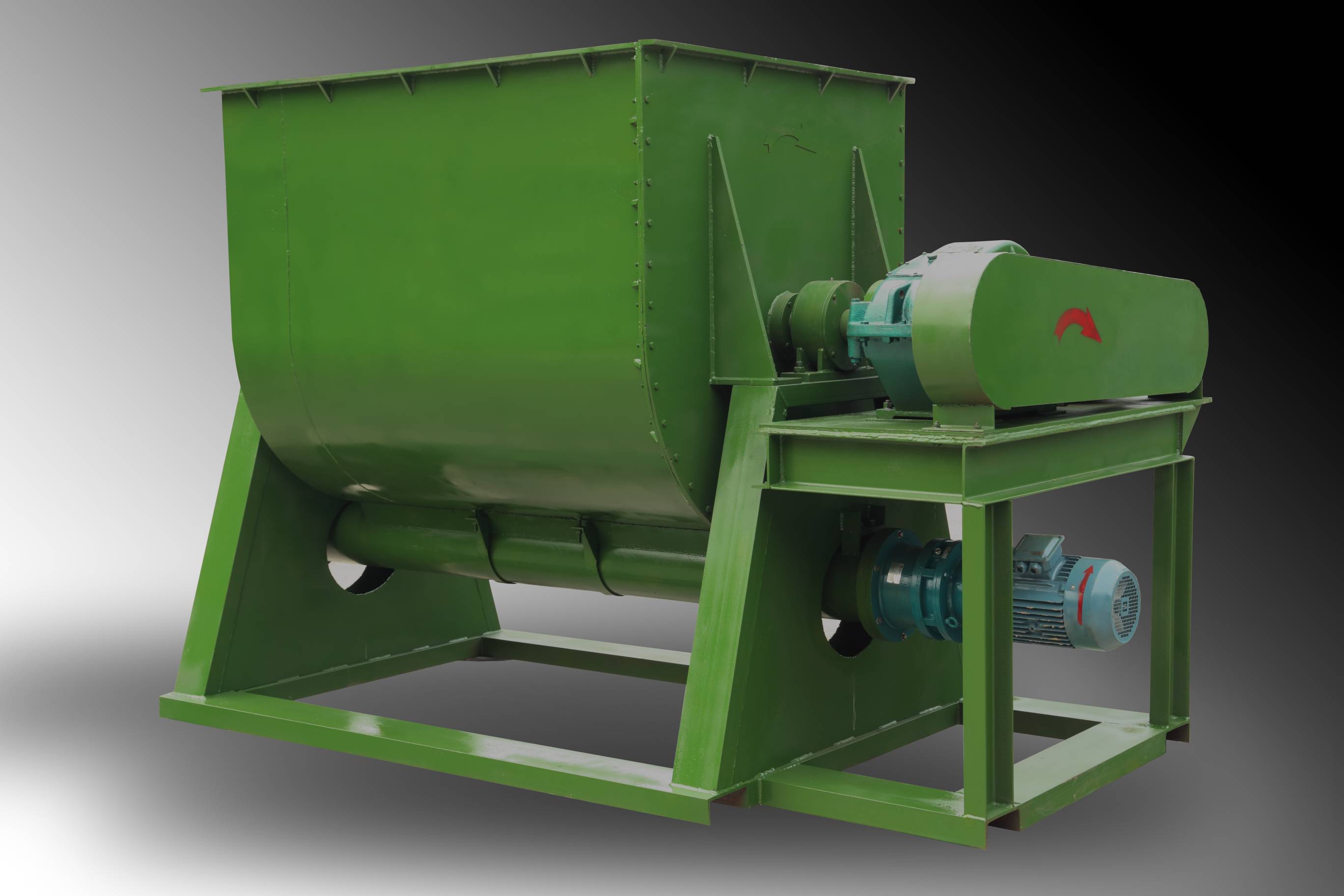

(1) The spiral blades of the mixer adopt a coaxial counter-rotating mixing method. There are two rotating blades installed on one shaft. The materials convection from both sides to the middle, which can increase the opportunities for the materials to contact each other, thereby making the materials Mix more evenly.
(2) It has the characteristics of loose mixture, good formability, convenient discharging, less leftover materials, easy cleaning, and high production efficiency.
Technical parameters Mixer for aluminium paste
Technical parameters of 4KL mixer | |
Model | 4KL mixer |
Material | steel plate Q235B |
Motor | 6-22kw |
Reducer | JZQ500-48.57 |
Inverter | 22kw |
Size of spiral unloader | Ф350*3800mm |
Speed | Speed 16 r/min |
Approximate weight | 3200KG |
Size | 4400*1700*2200mm |
We also provide customized services. If you don't know what kind of mixer is suitable for your production, please don't hesitate to contact us at any time. We will recommend the most suitable mixer for you according to your needs. Save you the time and cost of purchasing.
