Characteristic
(1) The material of the filter plate is imported TPE elastomer and high-strength polypropylene, so that the filter plate has both the elasticity of the rubber filter plate and the toughness and rigidity of the polypropylene filter plate, so that the sealing performance of the filter plate is better when it is pressed.
(2) The pressing method adopts hydraulic pressing, which can not only ensure the effect of pressing force during filtering materials, but also reduce manual labor and improve production efficiency.
Manufacturer: Jingjin Equipment Co., Ltd.
Components: frame, hydraulic station, motor, control cabinet (separate), filter plate, filter cloth

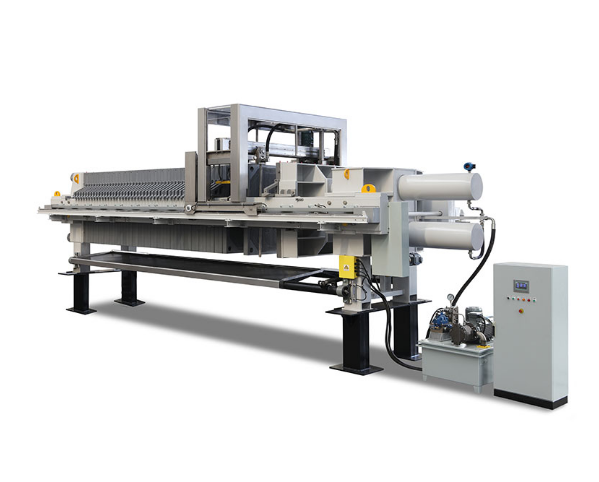

Filter press for aluminium paste production
| Technical parameters of Filter press | |
| Oil cylinder | φ200mm |
| Motor | 2.2KW |
| Control cabinet | |
| Approximate size of control cabinet | 450*220*550mm |
| Motor voltage | 380V |
| Motor frequency | 50 Hz |
| Filtration area | 80㎡ |
| Filter chamber volume | 1,51m3 |
| Filter plate size | 900*900mm |
| Number of filter chambers | 64 PC |
| Filter plate thickness | 60MM |
| Number of filter plates | 62PC |
| Filter plate material | twill wire mesh |
| Number of filter cloths | 126PC |
We will customize the most suitable filter press for you according to your expected output size and different application products. A professional technical team is always at your service.
If you have any questions, please don't hesitate to contact us at any time.
