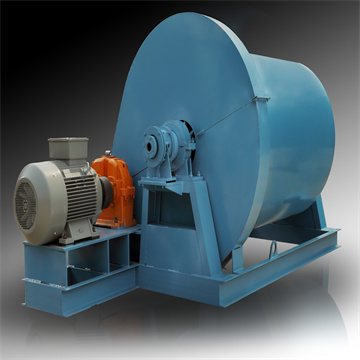

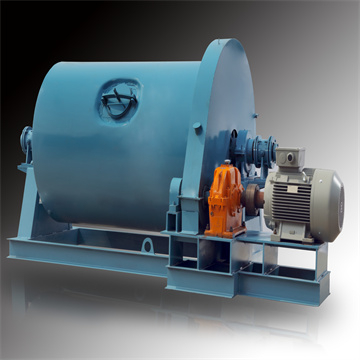

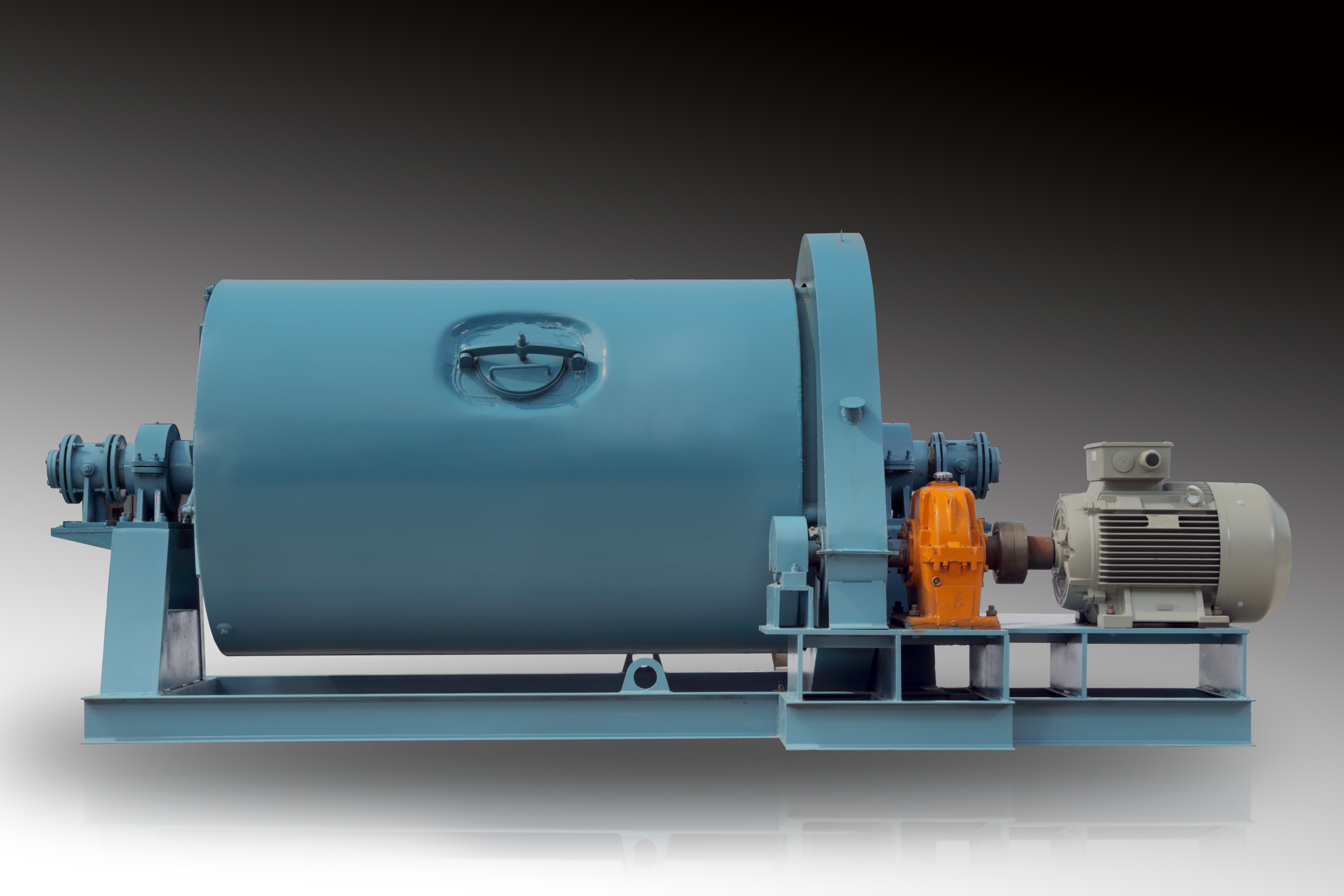

ball mill is mainly used to manufacturing aluminum paste and aluminum powder for AAC block. The standard model of ball mill is 1100*1200 and 1400*2200 which outside dimension is 2500*1700*1600 and 4150*2050*1850. We can also manufacture new ball mill models according to client’s requirement. With our products, you can be offered the best technique service and shall not worry about installation and production. We have professional engineers can solve all the problems for you.
BOCAI
Product Description
ball mill for aluminum paste ( aluminum paste for AAC block ,aluminum paste for coating )
1. internal cooling method,maintain constant cooling temperature,reduce energy consumption,recycle cooling water,saving energy and reducing noise.
2 the integration of ball mill body and chassis makes the installment and movement of the machine much easier.This design allows directly installation of the machine on the base ground
3 using a good transmission--Gear reducer-gear,this transmission have a high efficiency and stable performance.
4 the ball mill uses variable-frequency drive,which reduces the instantaneous current transmission of the motor at start,so as to improve the motor's shelf time.After using the frequency converter,the grinding speed of ball mill can be easily controlled according to different production requirement.
Typical Properties
Model | Φ1400*2200 | Φ1100*1200 | Φ1600*3300 |
Dimension(mm) | 4150*2050*1850 | 2500*1700*1600 | 4150*2050*1850 |
Weight(T) | 4.2 | 2.1 | 8.4 |
Cylinder Thickness (mm) | 16 | 16 | 25 |
Sidewall Thickness(mm) | 20 | 16 | 30 |
Lifting Rib Quantity(pcs) | 12 | 10 | 14 |
Gear Quantity | 136/ 20(160 ZDY) | 108/ 17(125 ZDY) | 107/20 (250ZDY) |
Motor Power(KW) | 30 | 11 | 90 |
Converter Power (KW) | 30 | 11 | |
Bearing | 23040/ 22312 | 22226/ 22310 | 23080/22319 |
Discharge(kg) | 190 | 90 | Circularly |
Need Steel Balls(T) | 3 | 1.52 |

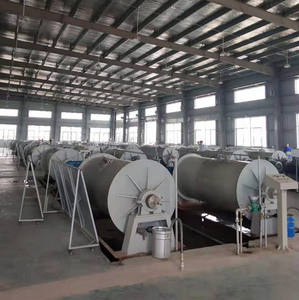

We can not only provide you with ball mill equipment, but also help you to build your own aluminum paste factory, providing a full set of services from equipment selection to product production, until we help you produce qualified aluminum paste products. If you want to buy equipment or want to build your own aluminum paste factory, contact us now
