QM14000*2200/QM1250*2500/QM1500*3600
BO YAN
product Description

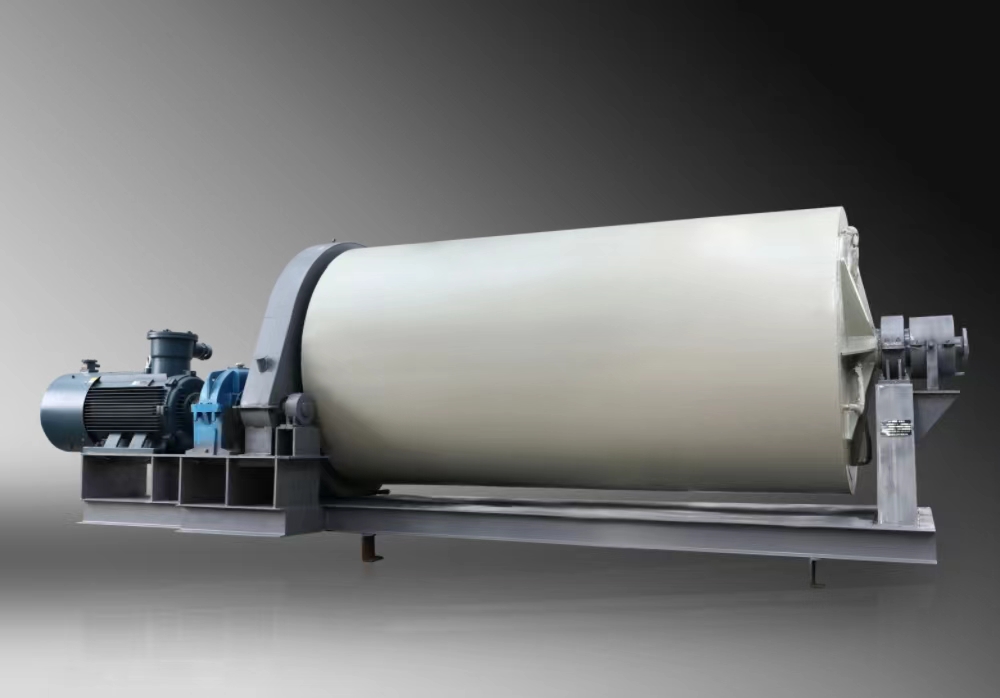

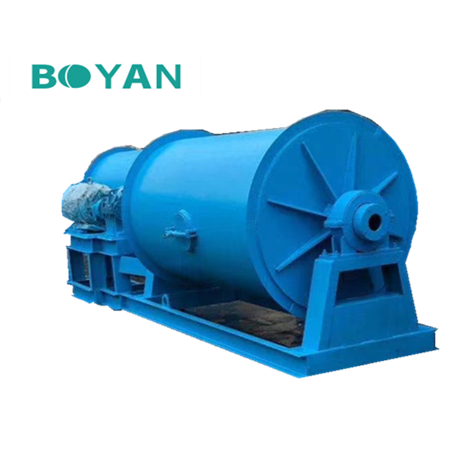

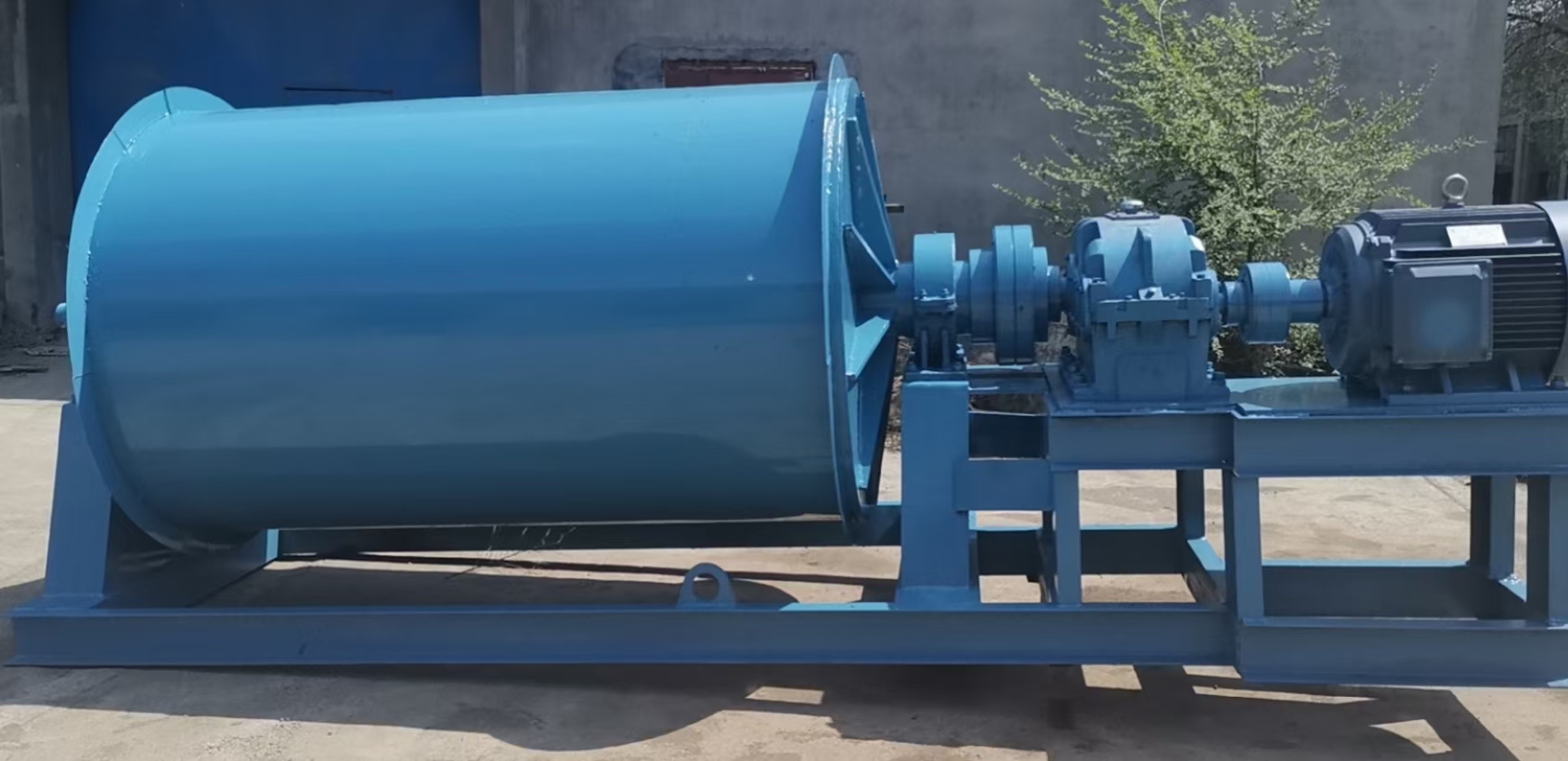

Ball mill is the key equipment for crushing materials. It is widely used in the production of aluminum paste, aluminum powder, zinc powder, cement, new building materials, chemical fertilizers, glass ceramics, etc.Ball mill is the key equipment for crushing materials. It is widely used in the production of aluminum paste, aluminum powder, zinc powder, cement, new building materials, chemical fertilizers, glass ceramics, etc.
| Item 项目名称 | Standard 技术参数 | Standard 技术参数 |
| Model 设备型号 | QM1400*2200 | QM1250*2500 |
| Cylinder size 筒体尺寸 | φ1400*2200 | φ1250*2500 |
| External dimensions 外形尺寸 | 4800MM*1500MM*1700MM (length* width *height) | 5100MM*1500MM*1600MM (length* width *height) |
| Electric motor 电动机 | YE3-250M-6 37KW | YE3-250-6 37 KW |
| Speed reducer减速机 | ZDY250-20 | ZDY250-20 |
| Cylinder speed 筒体转速 | ≈36 r/min | ≈36 r/min |
| Volume容积 | ≈3.3 m³ | ≈3m³ |
The above ball mill mainly use in production of aluminum paste ,aluminum powder
| Gearwheel 1500*3600 ball mill Para 齿轮1500*3600 球磨机参数 | |
| Item 项目名称 | Standard 技术参数 |
| Model 设备型号 | QM1500*3600 |
| Cylinder size 筒体尺寸 | φ1500*3600 |
| External dimensions 外形尺寸 | 6100MM*2400MM*2300MM (length* width *height) |
| weight重量 | ≈7800kg |
| Electric motor 电动机 | 6-90 KW |
| Speed reducer减速机 | ZDY250-4 |
| Cylinder speed 筒体转速 | ≈36 r/min |
| Gearwheel 齿轮 | 150/22 |
| Cooling methods 冷却方式 | Internal cooling |
The above ball mill mainly use in production of Zinc powder
We can also customize the ball mill according to your requirements. If you need other types of ball mills, or have any questions, please feel free to consult us, and we will have specialists to serve you
product Description
Ball mill is the key equipment for crushing materials. It is widely used in the production of aluminum paste, aluminum powder, zinc powder, cement, new building materials, chemical fertilizers, glass ceramics, etc.Ball mill is the key equipment for crushing materials. It is widely used in the production of aluminum paste, aluminum powder, zinc powder, cement, new building materials, chemical fertilizers, glass ceramics, etc.
| Item 项目名称 | Standard 技术参数 | Standard 技术参数 |
| Model 设备型号 | QM1400*2200 | QM1250*2500 |
| Cylinder size 筒体尺寸 | φ1400*2200 | φ1250*2500 |
| External dimensions 外形尺寸 | 4800MM*1500MM*1700MM (length* width *height) | 5100MM*1500MM*1600MM (length* width *height) |
| Electric motor 电动机 | YE3-250M-6 37KW | YE3-250-6 37 KW |
| Speed reducer减速机 | ZDY250-20 | ZDY250-20 |
| Cylinder speed 筒体转速 | ≈36 r/min | ≈36 r/min |
| Volume容积 | ≈3.3 m³ | ≈3m³ |
The above ball mill mainly use in production of aluminum paste ,aluminum powder
| Gearwheel 1500*3600 ball mill Para 齿轮1500*3600 球磨机参数 | |
| Item 项目名称 | Standard 技术参数 |
| Model 设备型号 | QM1500*3600 |
| Cylinder size 筒体尺寸 | φ1500*3600 |
| External dimensions 外形尺寸 | 6100MM*2400MM*2300MM (length* width *height) |
| weight重量 | ≈7800kg |
| Electric motor 电动机 | 6-90 KW |
| Speed reducer减速机 | ZDY250-4 |
| Cylinder speed 筒体转速 | ≈36 r/min |
| Gearwheel 齿轮 | 150/22 |
| Cooling methods 冷却方式 | Internal cooling |
The above ball mill mainly use in production of Zinc powder
We can also customize the ball mill according to your requirements. If you need other types of ball mills, or have any questions, please feel free to consult us, and we will have specialists to serve you
